Old 10-28-2010, 07:31 PM   #9
klm4755 OP
Studly Adventurer

Joined: Jun 2006
Oddometer: 575

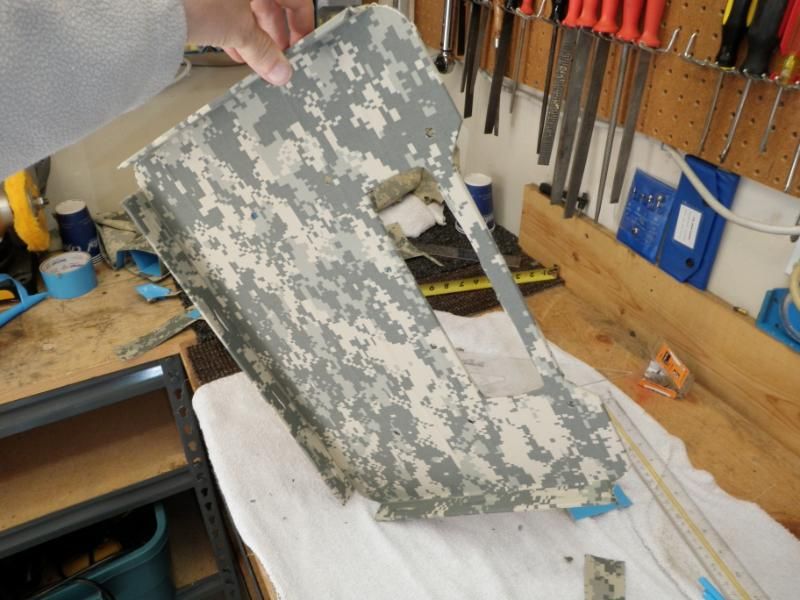

side panel

trim edges

edge sample

side panel on bike and overall progress

Rear parts off for paint prep

sanded rear foot pegs

painted parts

painted exhaust

rear wheel cleaned, sanded, masked, ready for primer

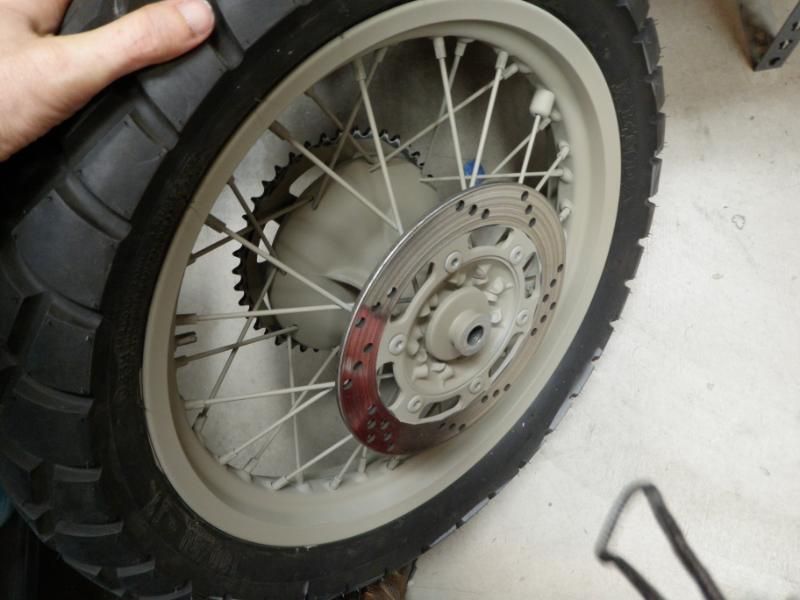

rear wheel after paint

remove masking on rear wheel

painted wheel

rear brake line covered

finished rear brake system

primer swing arm

misc parts painted

rear rack, I seemed to get better at keeping the fabric applied without creases as I went

underside view

looks good

set-up for panniers

just flip on material, best to use a single piece

flip again

camo pannier lock

pannier lock before and after

pannier cables...lower line = 12v line to power phone, ipod and heated clothes, upper line to control heated gloves and jacket

inside pannier

swing arm view

back view pannier lock, turn signals, plate frame, extended fender, and rack shown

right side view

underside view

seat...draped with 3x sections

Right side pannier

front view

left side view

left side pannier, knobs control heated gloves and jacket

front offset view

dash view

left side view

ready to ride...notice I have a 2" drop kit

Enjoy
Keithm
