But that's not all.....

The 950 ADV frames have 6 tubes going into the head tube. I now have 4 cut free with 2 more to go. Now's time to get the Sawzall out to start on the center tubes. Those are less critical because I've now recreated the headtube angle w/ the 1st and 2nd cuts in the CNC.

This proved to be more time consuming than I thought. I didn't have a great way to keep the frame from moving around the shop. Where is that ROBOT????

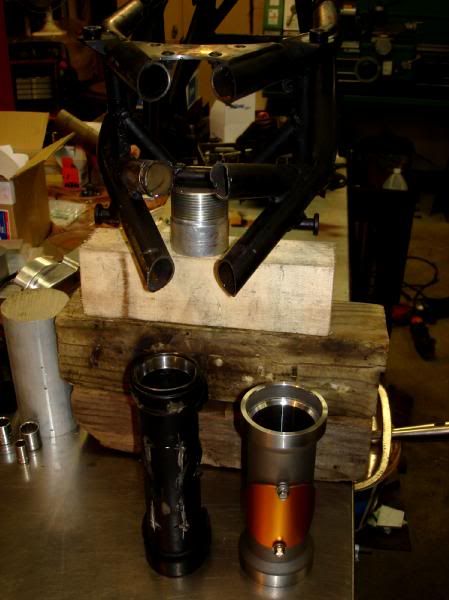

In about 2 days time I destroyed a perfectly good KTM 950 ADV frame.


Looks like progress to me, horror to anyone that stopped into the shop over those days.

Next step is to get this to fit.



Looks like more grinding and cutting.
