Installing the IICE Air on the R1150GS

Here is a short, illustrated installation guide for installing the IICE Air on the R1150 GS (Sorry for the quality of the pictures):

1.) Remove seats - Remove both seat.

2.) Remove Right Black Plastic Panel below Tank and find a Suitable Location to Mount the IICE Air - I found the best place to mount the IICE Air on my 2000 R1150GS was on the frame rail just below the lip of the right rear lower edge of the tank. Position the two leads of the IICE Air behind the frame and up under the rear lip of the tank to the area located center line of the tank.

3.) Attach the IICE Air - You can now attach the IICE Air to the frame rail (or wherever you want) with two nylon tie straps through the holes on the IICE Air around the frame.

2.) Locate Air temp sensor - You will find the Air Temp sensor right under the rear lip of the gas tank. The Sensor has a wire connector attached to it with a "female" plug -- this plug has a metal "bail" on it that must be depressed fully to release the connector. The "bail" faces toward the front of the bike.



3.) Remove the "Female" Plug from the Air Temp Sensor - The Sensor has a wire connector attached to it with a "female" plug -- this plug has a metal "bail" on it that must be depressed fully to release the connector. The "bail" faces toward the front of the bike. Depress the connector and carefully pull the plug up from the air temp sensor.

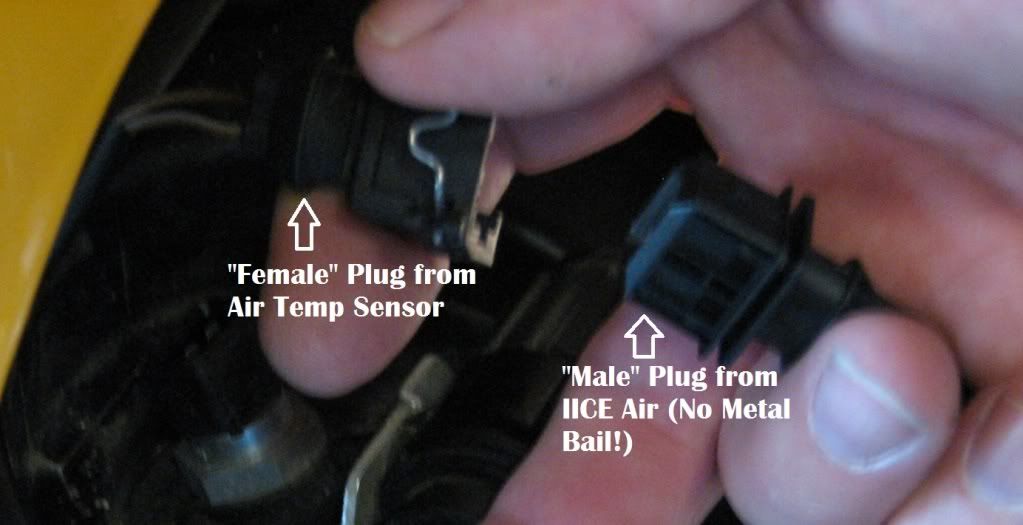

4.) Connect the "Female" connection that you just removed from the Air Temp Sensor to the "Male" connection lead from the IICE Air. The metal bail from the female connection from the Air Temp Sensor will "Click" when positively attached. Check the connection

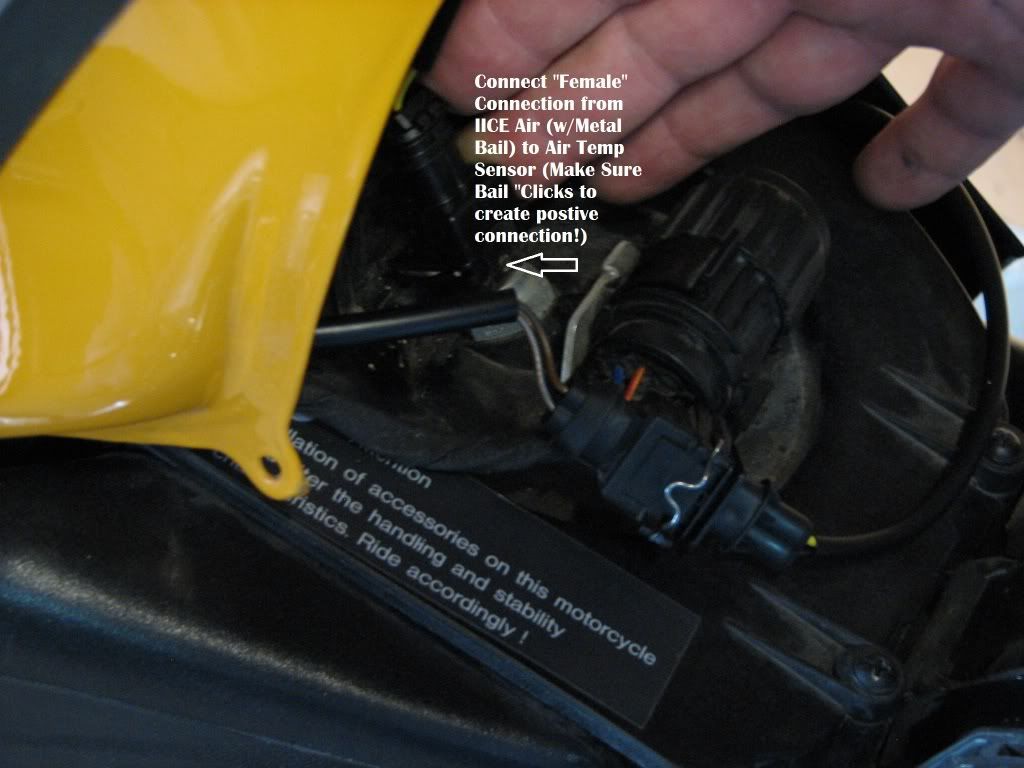

5.) Connect the "Female" connection from the IICE Air to the Air Temp Sensor.
Make sure that you have a positive connection! -- The metal bail from the female connection from the IICE Air will "Click" when positively attached. Check the connection.




6.) Recheck your connections.

7.) Recheck the mounting of your IICE Air.

8.) Re-install the Black Plastic Cover located beneath the Tank.

9.) Re-install the seats.

10.) Enjoy the increased performance, the lack of surging -- Ride like the wind!
