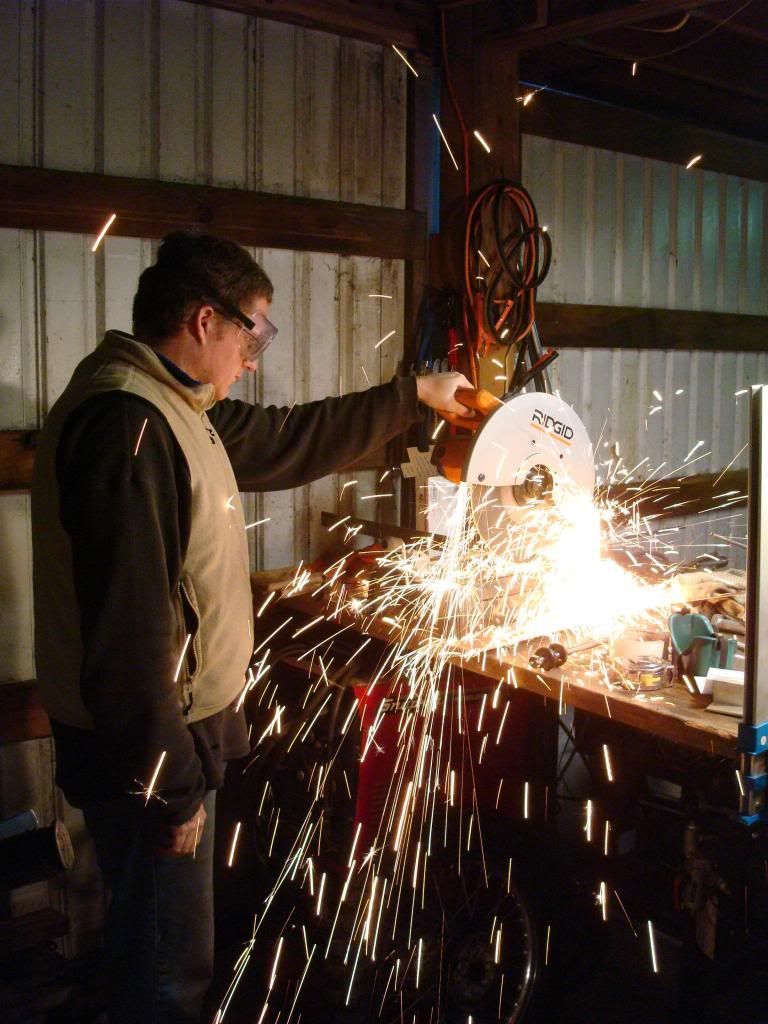

Another fun Saturday was had with Luke and Rick while working on the 650! First order of business was cutting a piece of 1-1/4" stock in half to create the brake-stay on the swingarm...

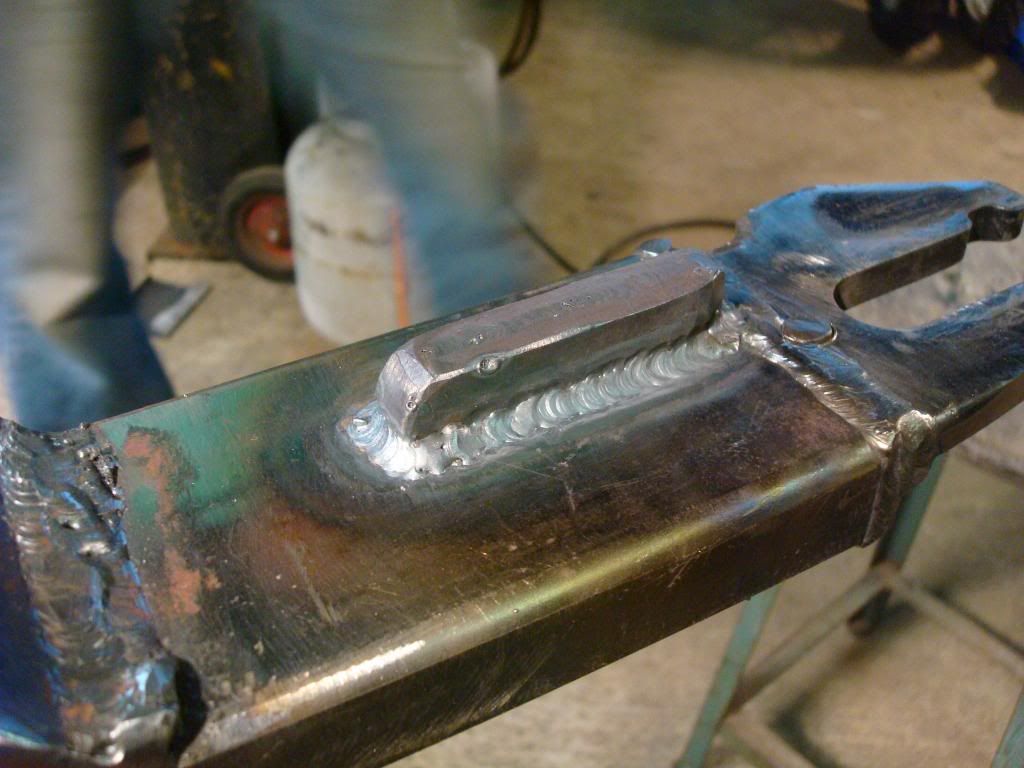

...which was followed by welding the two pieces together, some measuring, grinding, and attaching it to the swingarm:

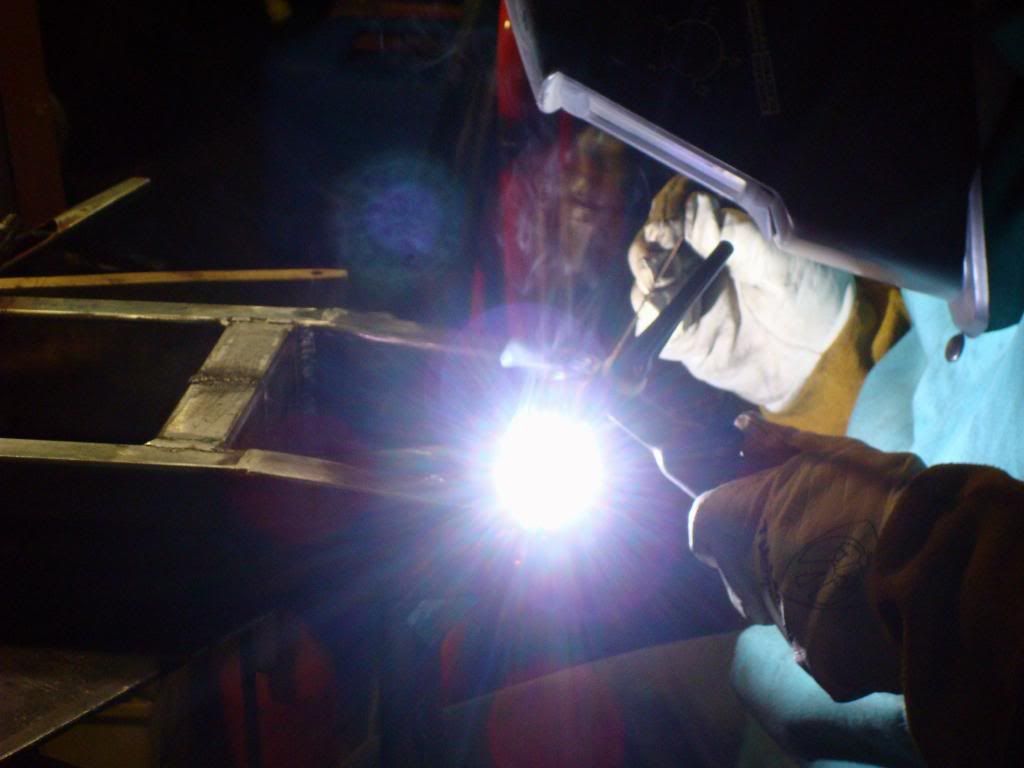

Another view of Luke's TIG Welds:

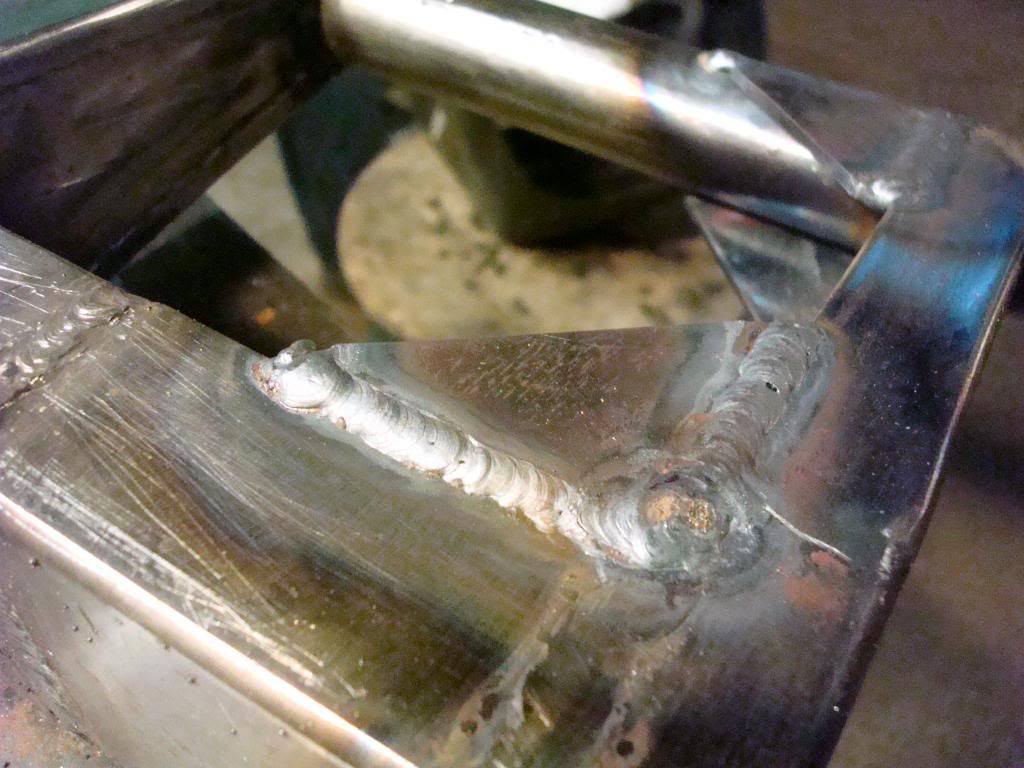

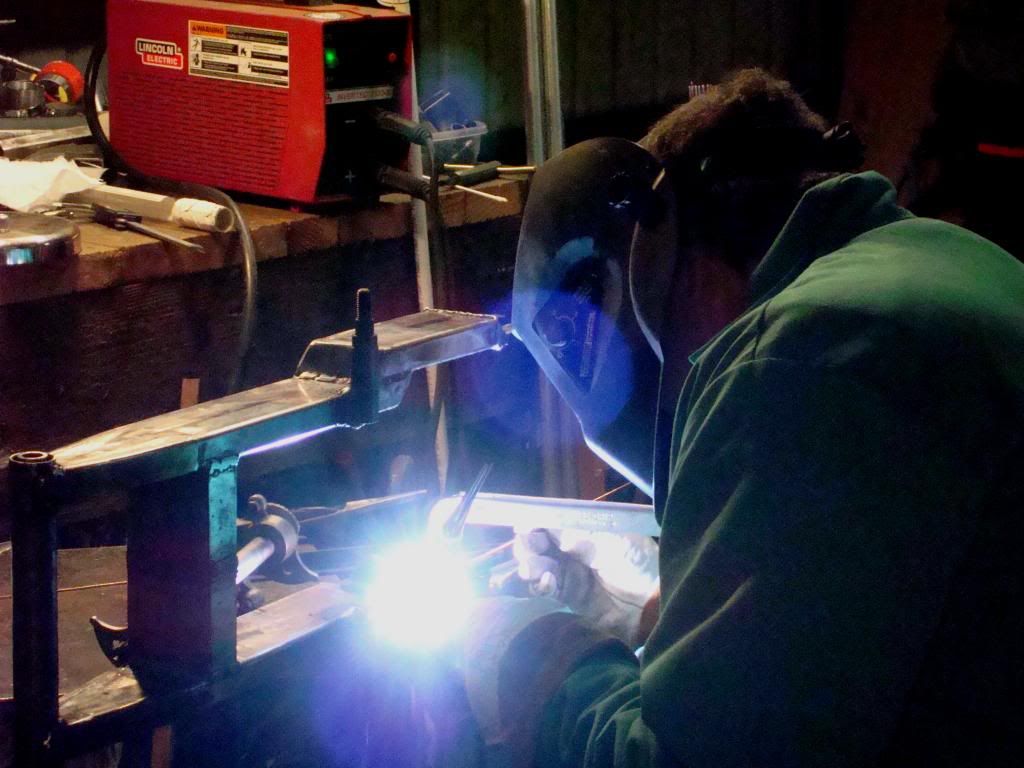

After fitting up the axle and brake stay, it was time to make some provisions to attach chain sliders, aka: "gussets." Which was followed by more welding.





With the gussets welded in place, some UHMW (ultra high molecular weight) polyethylene was carved up for the chain sliders:


We then needed to bend the sliders slightly to fit the contour of the swingarm... I didn't get any photos of this, but with four hands, lots of clamps and a heat gun, it got done.
