The slave pushes the rod through the shaft and into the clutch pressure plate.

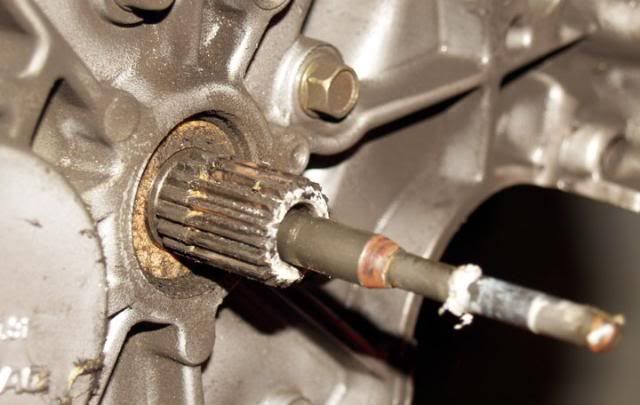

Shaft coming through the trans.


The shaft pushes on the pressure plate directly.

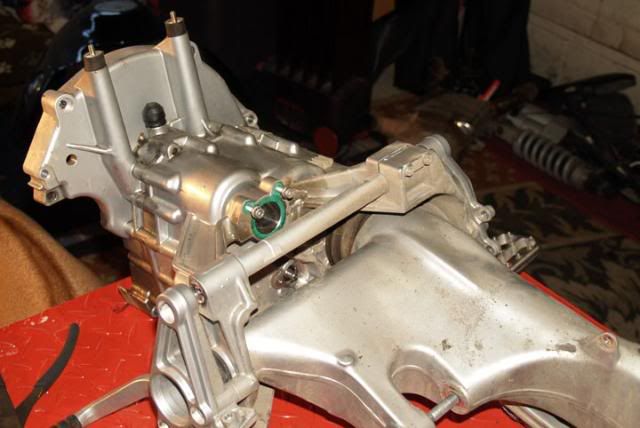

Here you can see the other side where the slave goes.


The pressure plate where the rod contacts it.




This might help too: http://www.advrider.com/forums/showthread.php?t=314290
