Old 08-27-2009, 08:17 PM   #1
Nemosengineer OP
Hair Ball

Nemosengineer's Avatar

Joined: Dec 2007
Location: San Diego
Oddometer: 859
They Called Them Superbikes...

The early days of Superbike racing from 1975 through 1984 was an amazing time, Moto-Guzzi, BMW, Ducati, Kawasaki, Suzuki, Honda, Leverda, Triumph and Norton all duking it out on "production machines", the good the bad and the ugly, all there, from works bikes to machine shop specials. It was a time of legends and gods...
In 1979 I had the good fortune to work at Racecrafters in the San Fernando Valley, I spent some time volunteering in support of the Racecrafters Superbike effort. Harry Mallet had taken over the tuning from Pierre Des Roaches, the folks logging saddle time were such notables as Steve McLaughlin, Harry Klinzmann, and Eddie Lawson. I was changing oil and cleaning parts...
Please post your photos and personal stories of early Superbike racing for all to enjoy

Name:  klinz82.jpg
Views: 9737
Size:  118.1 KB

: Mike
__________________
"An ill-assorted collection of poorly-matching parts, forming a distressing whole."

Nemosengineer screwed with this post 08-27-2009 at 08:47 PM
Nemosengineer is offline   Reply With Quote
Old 08-28-2009, 06:12 AM   #2
Bald Kirk
Dances with Dirt Bikes

Bald Kirk's Avatar

Joined: Mar 2007
Location: Aloha
Oddometer: 789
God bless bikes with great thrust and awful handling! I loved my Z1!

Let's see the old girls in race prep!

__________________
Kawasaki Lover
Bald Kirk is offline   Reply With Quote
Old 08-28-2009, 08:35 AM   #3
latigid
Adventurer

Joined: May 2008
Oddometer: 78
the heel on his riding boot is crazy!
latigid is offline   Reply With Quote
Old 08-28-2009, 10:52 AM   #4
Tripped1
Likely Lost.

Tripped1's Avatar

Joined: Aug 2009
Location: Sandy Eggo
Oddometer: 7,453
Quote:
Originally Posted by latigid
the heel on his riding boot is crazy!
Notice the leathers...

No knee pucks. I'd feel nekkid.
Tripped1 is offline   Reply With Quote
Old 08-28-2009, 11:04 AM   #5
ag_streak
Tiene Ruta Cuarenta?

ag_streak's Avatar

Joined: Aug 2006
Location: At the pointy ends of the bell curve (33702)
Oddometer: 3,156
Bell helmets! The apogee of noggin protection technology in the 1970's!

Bias-ply tires, no doubt!

Solid disk brakes! (EDIT: and single piston!)

What are those, like, 37mm fork tubes?
__________________
It is no measure of health to be well-adjusted to a profoundly sick society. – J. Krishnamurthy
BC, Canada Ride Report - Nova Scotia, Canada Ride Report

Improve your cosmic karma here!
ag_streak is offline   Reply With Quote
Old 08-28-2009, 11:40 AM   #6
Pantah
Red Sox Nation

Pantah's Avatar

Joined: Oct 2004
Location: India Wharf
Oddometer: 10,081
That's Klinzmann in that pic, right? #31. Whatever happened to him?
__________________
Straight ahead and faster -Bo Weaver 1970
"There I was..." -Griffin Niner Three Hotel
"One day closer to a parade..." Jonny Gomes, spring training 2013
Pantah is offline   Reply With Quote
Old 08-28-2009, 12:22 PM   #7
Jinx
Call me Renzo

Jinx's Avatar

Joined: Dec 2001
Location: Rearranging the deck-chairs on the iceberg
Oddometer: 10,838
Very, very cool


I was working on a Kawi Superbike team here in the PNW back then, and we ran enough California tracks (when we could afford to) that we probably have seen each other. Mostly we ran SIR, Portland, and Westwood up in BC. We loved Westwood because it paid better. We had pretty good sponsorship (Yoshimura, Fox, Kerker, Megacycle, D.I.D, MDS ignitions), and the local Kawasaki shop's van was our "transporter". It had only two seats. The rest of us had to sit on a bare metal floor in back with our legs under the bike and huffing gas fumes from the jerry cans.

Typical mongrel from the day. Our bike was originally built by Krauser, and they threw a bunch of money at it. But all it did was blow the fuck up on them (which takes some real talent with a Z1), so we bought it in 1980. Over the next year we changed damn near everything but the gas tank...and we re-painted that (which put Krauser's nose out of joint, but our attitude was: "Want that paint job to stay? Pay us")

The frame was classic "cheat like hell": About 80% of the stock tubes were replaced with thinner wall cro-mo. It had some hideous solid aluminum disc wheels when we bought it (geez, remember those?), which we replaced with morris and then dymag.

We re-designed the rear suspension to move the shocks up on the swingarm and lay them down 34 degrees. I was really happy with the way that worked out.

We had a trick set of genuine Yoshimura racing forks, but they had thin wall 36mm tubes and were shite. We built up a set of GS1000 forks (beefy 37mm tubes ), ran S&W springs from a Goldwing, and modified the dampers. We ran triple clamps from a Suzuki cruiser, because they had an extra set of bolts in the lower clamp and a lot more clamping area, and had a lot less offset than stock. They worked pretty well.

We had Fox remote reservoir shox, and we set up the low speed compression and rebound damping "medium", the high speed compression damping "fuck-all", the high speed rebound damping 'firm". We ran as little pre-load on both ends as possible, and changed spring rates when needed. To this day I hate pre-load. It just screws things up. Generally, if you could get a bike to handle well at Westwood (and ours did), it would handle well anywhere (OK, except Daytona, but Daytona is a freak show with banking). We probably ran more suspension travel at both ends than just about anyone, but that really helped to not overload those flexi-flyers. Those beasts were just not stiff enough to run short travel suspension with firm spring rates.

We ran Lockheed calipers and 13" rotors.

The crankshaft was a welded stocker (bomb proof, but heavy, I always wanted to build up a lighter crank but we never had the scratch), We ran Yosh single ring high-silicon cast (yeah, that's right) pistons. Those pistons were wonders: Bullet proof at high rpm and sealed perfectly every time. The heads were from Yoshimura, Branch, and later we got one from Kenny Augustine (but never raced it). Augustine's stuff impressed the hell out of me. The Yosh heads were all top end. The Branch heads were really nice all-around. We never ran more than 11:1 CR, as it killed the combustion burn (and top end power) above that. 11:1 was a good match to the cams. Squish clearances were 1.0 mm

We started with Yosh cams, but switched to Megacycle (they still list the #470-65A we ran) and they made power everywhere with 110 degree lobe centers. Yosh gave us inverted buckets that were much lighter than the KZ-650 stuff everyone else ran. The valve springs and Ti keepers were S&W from Branch. We had a racing D.I.D camchain from Japan (Yosh again), and the camchain tensioner was mechanical.

We got the bike with two sets of Yoshimura CR transmissions (really nice stuff), and the clutch was banded and had Barnett plates and stronger springs.

We had a "real" Kerker racing exhaust (the one they gave you that you had to weld up, not the one he sold). You knew you had arrived when Kerker gave you the good stuff (Same one he gave Muzzy and others)

As far as I know, we ran the first prototype MSD ignition for a motorcycle, and if someone else had a rev-limiter before we did, I never heard about it. We never needed more than 28-30 degrees of advance with single plugs.

We ran nothing but Castrol R (ahhhh, I love the smell of bean oil), and would change it twice on a weekend. We ran an MG oil cooler with AN fittings welded on.

We ran Goodyear slicks. We tried Michelins and Dunlops, but Goodies worked best.

The whole thing weighed 388 lbs (with gas), and made @135-140 BHP. It was as reliable as a pile of bricks with the following exceptions:
  • Never let a flat rate mechanic tighten anything smaller than an axle nut. We had a guy helping (he was no dunce) that was the service manager for the local Kawasaki shop. His specialty was stripping cam bearing bolts.

  • Those CR 31 Smoothbores were very weak in the main jet boss area. Over tighten a main jet, and you would crack the boss. That little crack would allow enough air to pass to weaken the main jet delivery. One cylinder goes lean...Engine goes poof. We found this early and used the spare set we had. We also think this is why the Krauser bike kept blowing up...they ran a whole season with a cracked carb body. Ours didn't blow up, and we were making a lot more power than they did. After the first year we were running Sparky's "Blue" carbs (from Branch) which were 34mm bodies with the AMA mandated 31mm restrictors, some really nice transition pieces between the carbs and the head that Jerry Branch gave us the dimensions for that made the motor believe that there was no carb restriction, so it was a moot point after we made the change.

  • Never let an idiot grind the lifter bores for cam lobe clearance. I used to set them up with about .020"-.040" clearance (the cams did walk around a little at 10K+ RPM). Idiot decided we needed more. Modified it on his own without telling us. Removed half the support for the lifter. RH exhaust lifter blew right out of the engine at Laguna when we were running top 6 or 7 (took a good chunk of the valve cover with it). The engine still ran five more laps to the flag, dousing the rider (and God knows who else) in Castro R firing on three cylinders. I think we wound up 13th or 14th, which was impressive for a 750cc triple

Other than that, it was completely reliable. We would do the top end every race (lap the valves and re-shim the springs, if needed, to get the seating pressures back where we needed). Cam chains, valve springs, and pistons every three races, new drive chain every two (hey, they were free)

We won a bunch of races (and a few track championships) in '81 and '82. Those were very good years, and the purses more than covered the expenses.

The AMA pretty much fucked us when they switched the class to 750's, and chose to do so in the middle of a recession (We had a deal lined up for Bardhal to sponsor the whole show for about $60K/ year...my how times have changed...but they pulled out when the economy tanked). We had no resources to build a brand new 750, and had no interest in running a warmed-over stocker mid pack. The rider moved onto BOTT, and I had to go to either Hell or Texas. I chose Texas. But we all had a hell of a good time for a few years. I love that era in racing.

PS - Wish I could find some pics. It was a 1979 Mk-II with a black tank and silver knee panels. Big ass Yoshimura sticker on the tank. Maybe mom knows where they went. Hell, I would love to know where the bike went (it was sold off as club racer, and last I heard succeeded in scaring the living shit out of the new owner...no, you can't buy wins), or maybe I don't. Old racing bikes rarely have happy endings.
__________________
- Jinx

"You remind me of the monkey with the jerk-off button, starving to death at the switch." - Chopperman

"I didn't know how many assholes it was going to take to piss me off, but I knew how many they were going to use" - collaboratori

Jinx screwed with this post 08-28-2009 at 04:27 PM
Jinx is offline   Reply With Quote
Old 08-28-2009, 01:56 PM   #8
Doscholiday
Doscholiday

Doscholiday's Avatar

Joined: Aug 2009
Location: Whittier
Oddometer: 2
Memories

I purchased my first motorycycle in 1987, it was a 1982 Kawasaki KZ1000 MKII (I was 16 years old at the time). Bought it of an older guy up my block who used to race in his prime. It needed some work (he had it sitting for years), had a bald rear tire, no front brakes and it took me awhile to get it started (changed the oil, new plugs, filter, etc) and finally got the ole girl to kick over. "Oh boy", I used to fly down residential streets (note to everyone, not a smart thing to do) at 80 miles an hour and brake so hard that I would fish tail her at every stop (LOL). I've had a lot of speed bikes until now and just purchased my first BMW Sport Tourer, but i'll tell ya, i sure miss that ole Kawi. Every so often I see if I can hunt a MKII down but they seem to be either non existent anymore or of musuem quality with a musuem price to match! Maybe one day i'll put er back in my stable, maybe one day...
Doscholiday is offline   Reply With Quote
Old 09-03-2009, 04:05 PM   #9
funhouse
Overdue

funhouse's Avatar

Joined: May 2007
Location: Santa Barbara
Oddometer: 3,044
old piles -- BMW variety

http://www.advrider.com/forums/showthread.php?t=244174

http://www.advrider.com/forums/showt...ight=superbike

From Motorcycles II

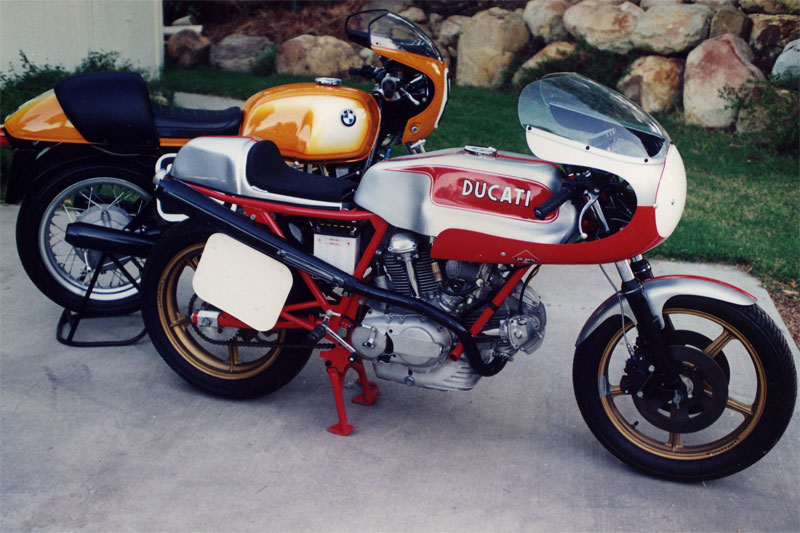

I owned/restored a couple of these old bikes and have a lot of photos in my picasa site below........details about McLaughlin's bike in the links above.....Bruce
__________________
A life spent inside a camera: Auto/Motorcycle factories/museums/travels/trains/planes/bikes/cars

http://picasaweb.google.com/funhouse750

funhouse screwed with this post 09-03-2009 at 04:26 PM
funhouse is offline   Reply With Quote
Old 09-03-2009, 05:36 PM   #10
7point62
freak of nurture

7point62's Avatar

Joined: Sep 2007
Location: Los Alamos, NM
Oddometer: 161
I love this thread!! Keep 'em coming.........
7point62 is offline   Reply With Quote
Old 09-03-2009, 05:46 PM   #11
KAdriver
adventures on asphalt

KAdriver's Avatar

Joined: Feb 2005
Location: Eastern PA
Oddometer: 796
Here's another bike I had the opportunity to race. It was heavy and
fast. And you better be pointing straight when you turned up the wick!!
1977 Honda CB750F, displacing about 1000cc. Thats a magneto next
to my right knee.



Other riders that raced it in the day where John Fuchs, Rich Chambers
& Dan Chivington
__________________
GARY NIXON | “SO– WHICH ONE OF YOU SORRY S.O.B.’S IS COMING IN SECOND?”
KAdriver is offline   Reply With Quote
Old 09-05-2009, 10:41 AM   #12
RedRocket
Yeah! I want Cheesy Poofs

RedRocket's Avatar

Joined: Feb 2003
Location: SoCal
Oddometer: 19,320
Some nice stuff in here.

C'mon guys, this is a SUPERBIKE RACING THREAD.
Get your streetbikes out of here. There are threads for those too.
RedRocket is offline   Reply With Quote
Old 09-05-2009, 04:15 PM   #13
HarveyMushman
commutingmysentence

HarveyMushman's Avatar

Joined: Jun 2002
Location: Virginia, USA
Oddometer: 16,195
__________________
Tim

photo galleries
HarveyMushman is offline   Reply With Quote
Old 09-06-2009, 08:50 PM   #14
farmer fred
Banned

Joined: Aug 2006
Oddometer: 1,493
Quote:
Originally Posted by HarveyMushman
That looks like fun!
farmer fred is offline   Reply With Quote
Old 09-09-2009, 07:28 AM   #15
roadholder
Beastly Adventurer

roadholder's Avatar

Joined: Jul 2007
Location: Ottawa, Canada
Oddometer: 2,389
1983

I remember Rainey doing a great job of spoiler as Honda introduced their new generation V-Fours!

roadholder is offline   Reply With Quote
