Old 12-09-2012, 11:25 AM   #16
troidus
Beastly Adventurer

Joined: Sep 2010
Oddometer: 12,083
The folding wire trick works, but fold a wire only once, and fold only one wire. If you need to take up more space than that, cut 6" of insulated wire of a gauge that two of which will fit into your connector with your other lead(s), strip both ends to fit the connector, and put both ends in the same end of the splice to take up the extra room. After crimping, secure the filler loop to the rest of the harness.
troidus is online now   Reply With Quote
Old 12-09-2012, 11:40 AM   #17
KeithinSC
Beastly Adventurer

KeithinSC's Avatar

Joined: Oct 2009
Location: Sandhills of SC
Oddometer: 1,207
I was told long ago not to solder anything subjected to vibration, (auto/aircraft) crimp only.

Anyone else learn it this way?



KeithinSC is offline   Reply With Quote
Old 12-09-2012, 12:02 PM   #18
troidus
Beastly Adventurer

Joined: Sep 2010
Oddometer: 12,083
Quote:
Originally Posted by KeithinSC View Post
I was told long ago not to solder anything subjected to vibration, (auto/aircraft) crimp only.

Anyone else learn it this way?
Boeing taught me how to solder aircraft wire bundle connectors, so I'm going to say "it depends."
troidus is online now   Reply With Quote
Old 12-09-2012, 12:12 PM   #19
Twilight Error
Going nowhere slowly

Twilight Error's Avatar

Joined: May 2002
Location: The Submarine Mines
Oddometer: 22,503
Quote:
Originally Posted by troidus View Post
Boeing taught me how to solder aircraft wire bundle connectors, so I'm going to say "it depends."
Yup.

From a production standpoint, crimped connections are superior - they're quicker to make, easier to inspect, and just as strong. A proper soldered connection is much more labor intensive, for not a lot of benefit.

One place where soldering *is* better is where the crimping operation breaks the tin or silver plate of the joint, exposing copper to the atmosphere. A soldered joint leaves that protective surface intact.
__________________
If you're all about the destination, take a fucking flight.
Twilight Error is offline   Reply With Quote
Old 12-09-2012, 01:11 PM   #20
the_gr8t_waldo
Beastly Adventurer

Joined: Feb 2006
Location: tacoma warshington
Oddometer: 2,040
nothing wrong about using #two- i ALWAYS use 'em along with non insulated crimps ( the "insulated type are the cutise plastic jacked ones) this for work mostly ..as hobby i usually solder. with the longer handles these make the very best connection..simple and cost effective. i wouldn't even consider the ones in pic #1 that being said, they do very well at cutting small screws- right tool for the right job

the_gr8t_waldo screwed with this post 12-09-2012 at 01:20 PM
the_gr8t_waldo is offline   Reply With Quote
Old 12-09-2012, 03:10 PM   #21
victor441
Studly Adventurer

victor441's Avatar

Joined: Jul 2009
Location: Sonoma, Calif.
Oddometer: 826

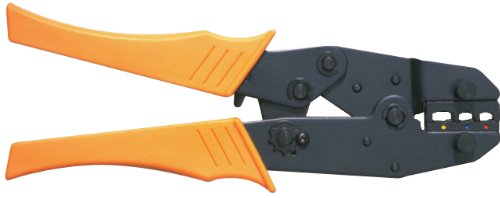

I have the second tool pictured and it is excellent for uninsulated crimp lugs. If you will be doing any crimps with insulated lugs it is well worth buying a quality ratcheting crimper...I finally got one about a year ago and wish I'd done it much sooner, my crimps are much stronger and more reliable now. Ratcheting crimpers also have interchangeable dies for various types of lugs, insulated and non-insulated. The Paladin below is what I bought, was about $60 with one set of dies included...


victor441 screwed with this post 12-09-2012 at 03:15 PM
victor441 is offline   Reply With Quote
Old 12-09-2012, 04:01 PM   #22
D.T.
One wheel wonder...

D.T.'s Avatar

Joined: Aug 2004
Location: Moneyapolis, MN
Oddometer: 9,617
That first crimper you have is junk, the second one is the one to use.

I assume most solderless connectors are copper plated with tin? Tin keeps the copper from oxidizing?

Soldering is not good when there is vibration present?
__________________
Quote:
Originally posted by burgerking So?
Holland is about the most expensive country in Europe when it comes to bikes and fuel..Stop whining and go riding It's just money and you only live once...
D.T. is online now   Reply With Quote
Old 12-09-2012, 04:27 PM   #23
Twilight Error
Going nowhere slowly

Twilight Error's Avatar

Joined: May 2002
Location: The Submarine Mines
Oddometer: 22,503
Quote:
Originally Posted by D.T. View Post
That first crimper you have is junk, the second one is the one to use.

I assume most solderless connectors are copper plated with tin? Tin keeps the copper from oxidizing?

Soldering is not good when there is vibration present?
Soldering is fine where vibration is present, the payload cone of a rocket is about as bad a vibration environment as you'll find anywhere, spacecraft have plenty of soldered connections.
Tin plated copper is the standard material, yes. Some applications are Silver or Nickel plate, but they all serve to protect the copper.
Crimping is easier and faster in a production environment, and takes much less skill overall.
__________________
If you're all about the destination, take a fucking flight.
Twilight Error is offline   Reply With Quote
Old 12-09-2012, 04:35 PM   #24
buickid
Lets ride!

Joined: Jul 2011
Location: Oahu, HI
Oddometer: 310
The trick is to get the wire hot quickly, and apply the solder quickly, so the solder doesn't wick far up the wire. Wire with solder wicked in isn't as flexible as plain wire.
__________________
2005 Yamaha Zuma YW50, 2009 Kawasaki Super Sherpa KL250
buickid is offline   Reply With Quote
Old 12-09-2012, 04:41 PM   #25
troidus
Beastly Adventurer

Joined: Sep 2010
Oddometer: 12,083
Quote:
Originally Posted by buickid View Post
The trick is to get the wire hot quickly, and apply the solder quickly, so the solder doesn't wick far up the wire. Wire with solder wicked in isn't as flexible as plain wire.
You also want to be able to see the wire strands through the solder, and solder fillets should be no more than 1/2 the wire diameter (1/3 diameter for spacecraft, IMS).
troidus is online now   Reply With Quote
Old 12-09-2012, 04:47 PM   #26
Twilight Error
Going nowhere slowly

Twilight Error's Avatar

Joined: May 2002
Location: The Submarine Mines
Oddometer: 22,503
Quote:
Originally Posted by troidus View Post
You also want to be able to see the wire strands through the solder, and solder fillets should be no more than 1/2 the wire diameter (1/3 diameter for spacecraft, IMS).
Yup.

Anyone can blob on solder. It takes an artist to use *just* enough.
__________________
If you're all about the destination, take a fucking flight.
Twilight Error is offline   Reply With Quote
Old 12-09-2012, 05:07 PM   #27
troidus
Beastly Adventurer

Joined: Sep 2010
Oddometer: 12,083
And then there's gold embrittlement.

When soldering gold connections, tin the connector, then wick out the solder. That will pull the gold plating off, then you can solder normally.
troidus is online now   Reply With Quote
Old 12-09-2012, 10:47 PM   #28
Jamie Z
Beastly Adventurer

Jamie Z's Avatar

Joined: Oct 2006
Location: almost Memphis
Oddometer: 7,727
http://www.advrider.com/forums/showthread.php?t=281500

One of the best threads on ADV.



Jamie
__________________
I'm the Tent Space Guy Sign up to host fellow travelers here.

Budget Travel the Jamie Z Way
Jamie Z is online now   Reply With Quote
Old 12-10-2012, 01:22 PM   #29
usgser
Beastly Adventurer

Joined: Nov 2005
Location: Westside WA
Oddometer: 1,995
I would spring for the tool in the 2nd pic. I've got similar for home use It's a Klein J1005? overall length about 10". Has clean solid jaws and enough leverage for clean tight crimps. The one in pic 1 will work if it's all you have to get rolling again but it's pretty much a junk tool. For home use and quality crimps I use the Klein. I've got one of the cheap junk ones I keep in the tool roll for emergency road repairs, better than nothing. I don't care how much shrink tube or electric tape you use...a bad connection is a bad connection.
usgser is offline   Reply With Quote
Old 12-10-2012, 02:27 PM   #30
ragtoplvr
Beastly Adventurer

Joined: Oct 2007
Location: S. W. Mssouri
Oddometer: 5,619
There is no better connection than a properly made solder connection.

There is no worse connection than a bad solder connection.

Crimp is used because it is faster, more idiot resistant and using the right connector almost as good.

Rod
ragtoplvr is offline   Reply With Quote
