BMW F650GSR - Rallye Project Bike

eh, hello F650 enthusiasts

Just over a year ago I set out to replace the suspension on my 2001 F650GS Dakar and begin building a rallye kit for the bike...by July 2009 I had my Dakar on WP suspension front and rear. I couldn't ride it, however, because I gave away my front fairing bracket and ran short on time for the project and didn't get a replacement put together. The Dakar sat, unused for the whole riding season and was rotting away in the basement until Christmas 09.

For the past six weeks or so I have been working with more consistency and hope to have the bike completed by June and at least ridable by mid April when the snow melts.

So for now, I'll introduce the F650GSR...an american rallye conversion of the popular F650GS.

Highlights of what I hope to complete by June include the following:
  • WP suspension front and rear
  • Rallye engine guard with storage, increased ground clearance and relocated side stand
  • Rallye fairing for improved cockpit layout and more wind protection, among others
  • DE projector headlights
  • Oil cooler
  • new front fender
So here is a sequence taken over a few afternoon work sessions when I got the thing mostly together. There were some inital comparison photos, then the actual build.

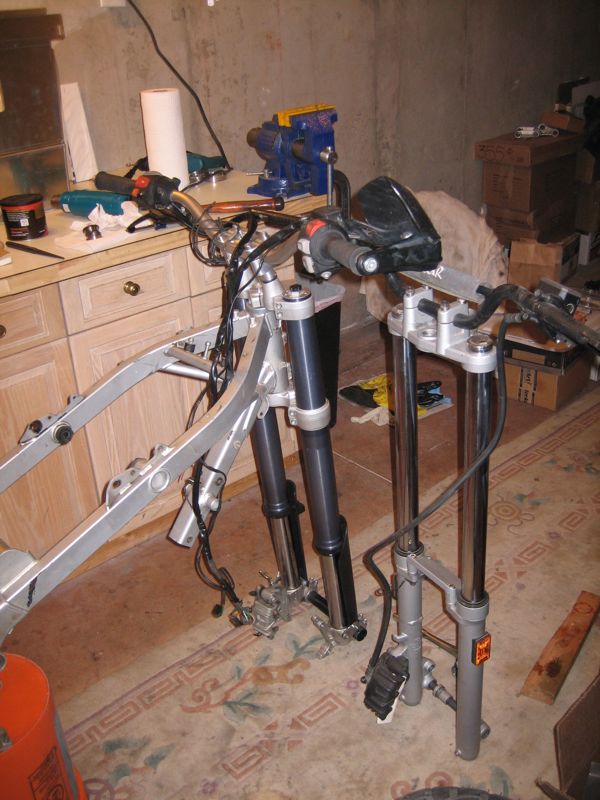

Photo 001 shows the original SHOWA Dakar front end at left and the new WP front end at right


Photo 002 is the same from the back corner


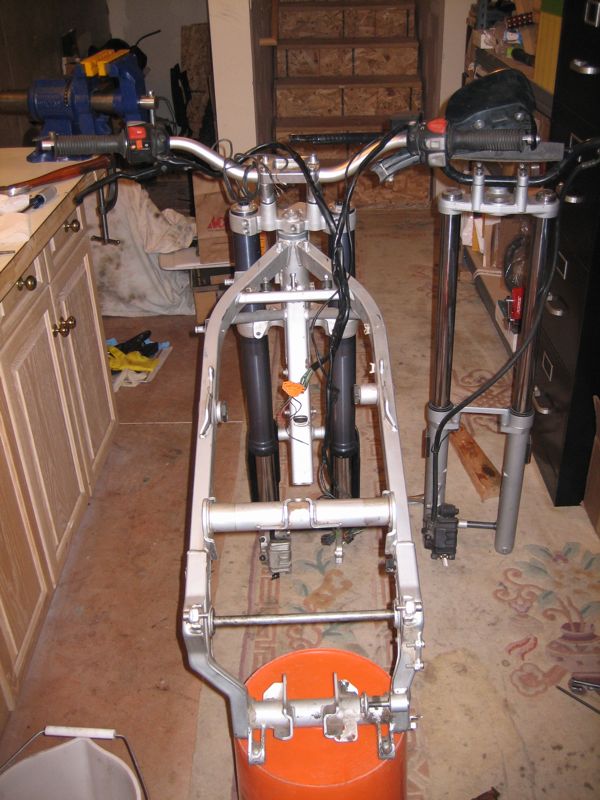

Photo 003 depicts the Magura X-Line 28mm handlebars mounted on Emig Racing clamps sitting on top of some home-made risers (the risers have been ditched for now)

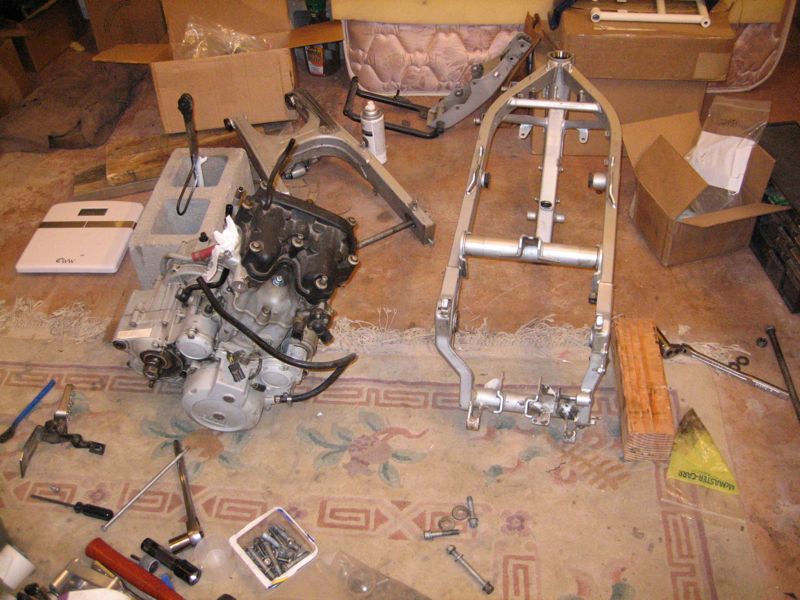

Photo 007 - The main bits on the floor

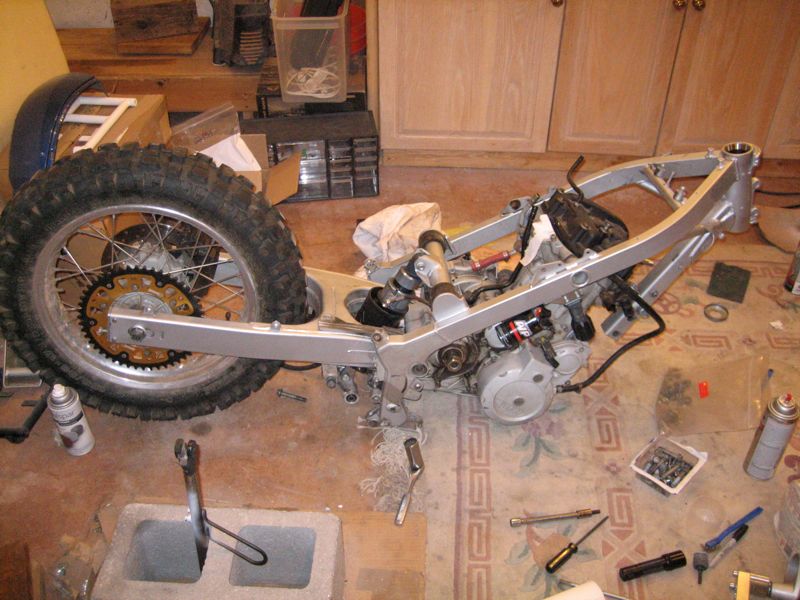

Photo 008 - getting feet under the frame


Photo 009 - finally standing up-right on inflated tires


Photo 009 - starting to look like a motorbike


Photo 010 - the front, minus the fairing

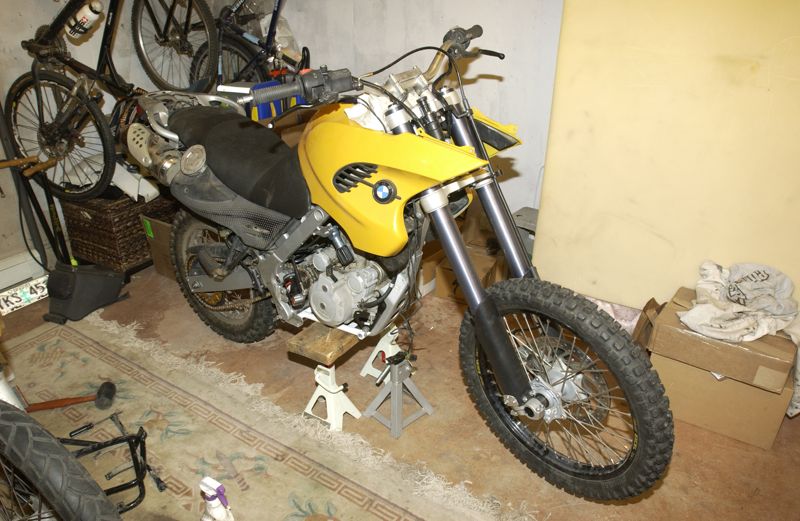

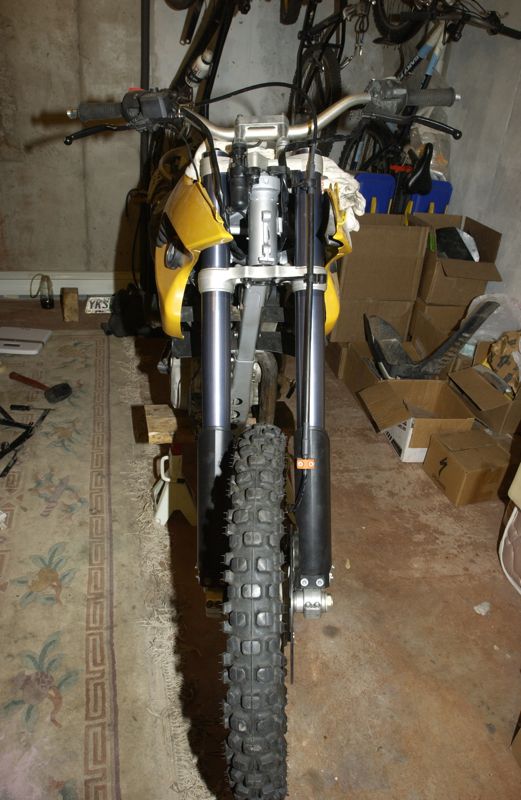

Photo 011 - quarter profile, still missing a fairing


Summary for this entry:
  • Magura X-Line 28mm handlebars courtesy of Touratech, p/n 041-0907, featuring the heated grip provision used by BMW. These bars are way too expensive for what they are and they are a total PITA. I would hesitate to recommend these to anyone. More reviews to follow.
  • WP 48mm USD forks on KTM 950 ADV clamps, KTM 450SX stem turned down to accept BMW-spec steering head bearings from All Balls
  • The fork guards are from a KTM 85SX
  • The front wheel is a KTM 640 ADV hub laced to an Excel 21" rim with large gauge stainless steel spokes
  • Brake caliper is OE Brembo from the KTM 950 ADV and uses a 300mm rotor like the original Dakar; master cylinder is the OE Brembo on the Dakar (interestingly enough, the KTM caliper is identical to the BMW, but silver, different mount though)
  • Tires are Pirelli MT-21s
I would like to thank Komatias for his help on this project; he started his build well before me and had most of the details sorted before I even started. With his insight I was able to simplify the purchasing process and I ended up with most of what I needed in first round of purchasing.

-so that is about it for now. More to follow!

sellmeyer screwed with this post 03-19-2010 at 11:33 PM
sellmeyer is offline   Reply With Quote
Old 02-16-2010, 01:35 PM   #2
john_aero
Beastly Adventurer

john_aero's Avatar

Joined: Feb 2008
Location: Ireland
Oddometer: 1,138
looks class,pitty mine doesnt look that good.

thoes forks look same lenght as standard.

also what shock you fitting? one for the bmw or a shock of a different bike
__________________
women are like clouds.......
once they fuck off it is a really nice day.......
john_aero is offline   Reply With Quote
Old 02-16-2010, 03:51 PM   #3
Throttlemeister
Beastly Adventurer

Joined: Sep 2007
Location: Okie near Muskogee
Oddometer: 3,555
I really like the idea of KTM forks with dual discs on a Dakar, just have to figure a way to fit the ABS ring. Looks like you've done a great job so far. I know how everything takes so much time when your building a custom one-off piece

I look forward to watching this all come together.
__________________
www.throttlemeister.net
Throttlemeister is offline   Reply With Quote
Old 02-16-2010, 03:57 PM   #4
herrhelmet
A Serious Man

herrhelmet's Avatar

Joined: Mar 2008
Location: USA West
Oddometer: 2,361
Nice. Can't wait to see more pics.
__________________
"Your bike is too heavy" www.motolithium.com TWITTER
herrhelmet is offline   Reply With Quote
Old 02-16-2010, 06:35 PM   #5
sellmeyer OP
Gnarly Adventurer

Joined: Mar 2007
Location: Aspen, Colorado USA
Oddometer: 410
Quote:
Originally Posted by Throttlemeister
I really like the idea of KTM forks with dual discs on a Dakar, just have to figure a way to fit the ABS ring.

It was my original plan to go the twin disc route on this because, initially, I had both brake calipers and a line on a master cylinder to drive them both. Two things turned me away from this plan:

a) the brembo master cylinder from the KTM wouldn't integrate nicely with the RHS switch housing for the BMW...at least not that I could easily enough for my taste.

b) the most significant reason for dumping the twin brakes was that they benefit folks who ride street tires on the tarmac...not off-road riders. Generally I ride knobbies because I like the dirt and rocks...with a single rotor I can lock up a front wheel on my Dakar; I don't need a 2nd brake on the front!

-that being said...the KTM 950 front end is a simple way to put a 2nd brake on the front of your Dakar. If this is something you want to do I would dump the RHS switch gear and throttle and go with a full KTM solution on the RHS of the handlebar. Its almost plug and play!


-regarding the front ABS rotor, I'd encourage you to dump the ABS to lighten the bike and simplify things with the brake system...but if you want to keep the ABS I can't imagine the ABS ring and sensor mount would be that difficult to sort. I have an ABS ring lying around my somewhere...I'll get a photo of it on the KTM hub for you.
sellmeyer is offline   Reply With Quote
Old 02-16-2010, 06:51 PM   #6
sellmeyer OP
Gnarly Adventurer

Joined: Mar 2007
Location: Aspen, Colorado USA
Oddometer: 410
Quote:
Originally Posted by john_aero
looks class,pitty mine doesnt look that good.

thoes forks look same lenght as standard.

also what shock you fitting? one for the bmw or a shock of a different bike
Right now the front WP forks are set up for the same length as the original SHOWA forks with 210mm of travel; I can change out some of the internals to make it maybe 265mm of travel and taller...but for now I'm sticking with stock metrics.

The rear stock is a 4014 Fusion with adjustable length, rebound dampening, high speed compression and low speed compression, and remote preload. I was considering the one that touratech sells, but I wanted more adjustability because I knew the bike was undergoing many changes. The touratech model has more travel than mine but the only adjustments it offers are the rebound and single compression dampening-length is fixed and the preload can't be adjusted without the subframe jacked up and requires a wrench.

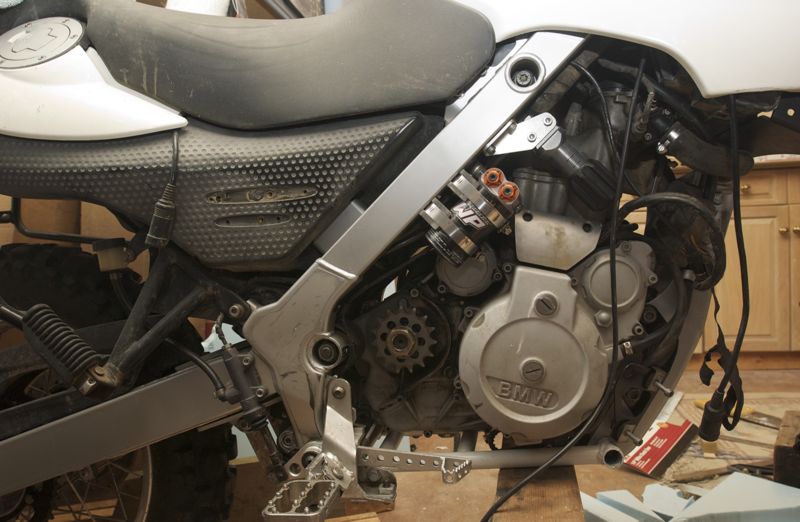

Photo 013 shows the reservoir and preload adjuster mounted on the frame


-hope this helps.

sellmeyer screwed with this post 02-16-2010 at 07:48 PM
sellmeyer is offline   Reply With Quote
Old 02-16-2010, 08:33 PM   #7
sellmeyer OP
Gnarly Adventurer

Joined: Mar 2007
Location: Aspen, Colorado USA
Oddometer: 410
a few sketches of the concept exterior

This is a rough idea of what I have in mind for this project

Up front I'd like a taller windscreen; the single spark dakar screen puts air flow at my eyebrow and I'd like it to go just over my helmet, if possible
I'd like the fairing to go on and come off with fewer fasteners and hassle that the stock crap that BMW put on the bike
I want better lights
I'd like an oil cooler
I run too many instruments to fit around the instrument cluster on the stock setup, the new instrument panel needs more room and mounting options for indicators, switches, and instruments
And overall, the front end needs to be rock solid; the stock junk shakes too much!

Down on the bottom I'd like a bit more ground clearance and coverage for the engine and little bits
I value tool storage that a rallye-style engine guard can offer because it is easier to get at stuff down there than taking off the seat to pick out an over-stuffed tool roll crammed too tightly into the small space above the fuel tank
Lighter weight than the OE bash plate and engine bars is a plus and certainly possible with composites
A relocated side stand is important to me after scraping off one of my side stand springs in Guatemala...I don't want to lose the ability to park my bike in an upright orientation
Plus I'd like a truly flat and smooth surface on which I can jack up the bike or put it on a box-this is pretty much impossible with the stock kit



Here is a sketch of the front that I did about a year ago


One more from the side with the stock fender

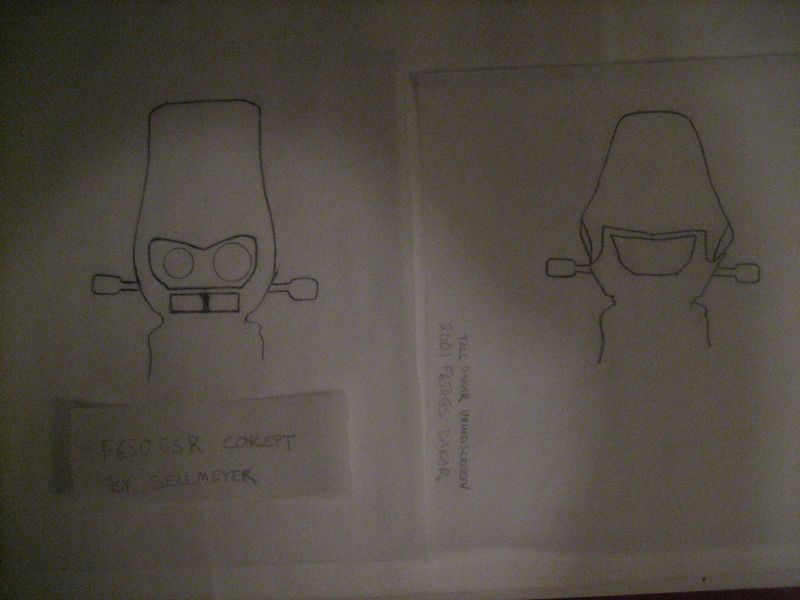

A side by side comparison against the single spark Dakar windscreen
