Time to remove the master cylinder and brake lines.


Master cylinder appears in good condition externally. Will disassemble completely, clean and inspect.


All the parts appear to be in good condition, just dirty, and the grease is all dried up. Time for cleaning and fresh grease. It is amazing that all the parts are such high quality. These old BMW's are great machines, very well made, and it's easy to work on them. Looks like I will have to buy some expensive pistons, but most of the work is just cleaning and lubrication.

craydds screwed with this post 11-15-2011 at 05:51 AM Reason: photo
craydds is offline   Reply With Quote
Old 11-14-2011, 09:52 PM   #17
oz_airhead
Gnarly Adventurer

Joined: Mar 2010
Location: AUS
Oddometer: 185
Some stuff I wrote recently to the airlist, might be useful..

Firstly, watch any parts you get particularly the Caliper Dust Seals. I
destroyed four Caliper dust seals, all purchased aftermarket – from the
U.K. I read everything I could, searched archives, and just could NOT
get them on without destroying the seal, particularly on the outer edge
where it bonds to the metal stiffening ring. In the end after No.4, I
worked out (I'm pretty quick on the uptake, eh?) I had Buckley's of
getting one on without destroying it..

In the end I pressed one on using a mates press. Even then it still was
slightly damaged. I had to be doing something wrong....

So I got my measuring stuff out. I measured. After I measured some OEM
ATE seals I found out that they (aftermarket seals ) are approximately
~0.05mm bigger in diameter! Needless to say the OEM dust seals just
pushed in with thumb pressure. The actual fluid seal (aftermarket & OEM)
seemed to work fine. But as far as I know you cannot get OEM seals
without a piston – and that's how I got mine.

The pistons themselves. One was cactus, the other had corrosion in a
non-
travel part of it's body. In other words it was corroded no where near
the fluid side of the piston. So I reused that one. The other was crook,
so I stumped up and bought a new one, OEM of course – ouch!

Another thing for me was that I stripped the Caliper body bleeder
screw thread. I thought about a repair kit you can apparently get,
(mate said they were pretty dodgy at beast) but ended up with a good
second hand unit. Interesting was that the wrecker had only one 38mm
caliper left (mine are 38mm) but heaps of 40mm – so keep that in mind
if you need one.

Bleeding was relatively easy. I bled holding the caliper up as high as I
could with a wedge of timber holding the pads apart. Air came through
easily, did the other side, and I got a good lever feel quickly. Thanks
to whomever posted that tip on to the Airlist!

The brakes themselves are fantastic! Gone is the constant dragging of
the pads on the disk that I had before. After 36 years you would reckon
that the rubber seal would have had it! Performance seems to me to be
much better, I reckon I could lock the front wheel easily now – still
not two finger – it ain't a S1000RR either!

Finally, I think this job should be high up the list as a thing to do
sooner rather that later. Our bikes are getting on and well brakes are
Important!

HTH

OZ

oz_airhead screwed with this post 11-15-2011 at 12:37 AM Reason: edit for clarity
oz_airhead is offline   Reply With Quote
Old 11-15-2011, 08:28 AM   #18
JonnyCash
turd polisher

Joined: Jan 2011
Location: Midcoast, Maine
Oddometer: 1,349
Now would be the time to go with a handlebar mounted MC! I put one one my single ATE front end, and I swear it has more usable stopping power than when I was running the stock ATE dual disks like you are. I used a general fitment Magura MC and it looks good and works great. This being an R90S you might be wanting to keep it all stock, but it's all bolt on stuff, so you could always go back if you wanted, but I bet you never would.
__________________
I wouldn't bring her home to Mama, but Mama ain't home tonight.
JonnyCash is online now   Reply With Quote
Old 11-15-2011, 09:12 AM   #19
craydds OP
Beastly Adventurer

craydds's Avatar

Joined: Aug 2010
Location: Las Cruces, NM
Oddometer: 1,127
Quote:
Originally Posted by oz_airhead View Post
Some stuff I wrote recently to the airlist, might be useful..

Firstly, watch any parts you get particularly the Caliper Dust Seals. I
destroyed four Caliper dust seals, all purchased aftermarket from the
U.K. I read everything I could, searched archives, and just could NOT
get them on without destroying the seal, particularly on the outer edge
where it bonds to the metal stiffening ring. In the end after No.4, I
worked out (I'm pretty quick on the uptake, eh?) I had Buckley's of
getting one on without destroying it..

In the end I pressed one on using a mates press. Even then it still was
slightly damaged. I had to be doing something wrong....

So I got my measuring stuff out. I measured. After I measured some OEM
ATE seals I found out that they (aftermarket seals ) are approximately
~0.05mm bigger in diameter! Needless to say the OEM dust seals just
pushed in with thumb pressure. The actual fluid seal (aftermarket & OEM)
seemed to work fine. But as far as I know you cannot get OEM seals
without a piston and that's how I got mine.

The pistons themselves. One was cactus, the other had corrosion in a
non-
travel part of it's body. In other words it was corroded no where near
the fluid side of the piston. So I reused that one. The other was crook,
so I stumped up and bought a new one, OEM of course ouch!

Another thing for me was that I stripped the Caliper body bleeder
screw thread. I thought about a repair kit you can apparently get,
(mate said they were pretty dodgy at beast) but ended up with a good
second hand unit. Interesting was that the wrecker had only one 38mm
caliper left (mine are 38mm) but heaps of 40mm so keep that in mind
if you need one.

Bleeding was relatively easy. I bled holding the caliper up as high as I
could with a wedge of timber holding the pads apart. Air came through
easily, did the other side, and I got a good lever feel quickly. Thanks
to whomever posted that tip on to the Airlist!

The brakes themselves are fantastic! Gone is the constant dragging of
the pads on the disk that I had before. After 36 years you would reckon
that the rubber seal would have had it! Performance seems to me to be
much better, I reckon I could lock the front wheel easily now still
not two finger it ain't a S1000RR either!

Finally, I think this job should be high up the list as a thing to do
sooner rather that later. Our bikes are getting on and well brakes are
Important!

HTH

OZ
The stock, original outer seals look good.

I will re-install them.
craydds is offline   Reply With Quote
Old 11-15-2011, 09:19 AM   #20
craydds OP
Beastly Adventurer

craydds's Avatar

Joined: Aug 2010
Location: Las Cruces, NM
Oddometer: 1,127
Quote:
Originally Posted by JonnyCash View Post
Now would be the time to go with a handlebar mounted MC! I put one one my single ATE front end, and I swear it has more usable stopping power than when I was running the stock ATE dual disks like you are. I used a general fitment Magura MC and it looks good and works great. This being an R90S you might be wanting to keep it all stock, but it's all bolt on stuff, so you could always go back if you wanted, but I bet you never would.
I might consider that master cylinder. I am not going for a show bike or a trailer queen, I want to RIDE this bike, so keeping it all original is not too important. Yes, it will still look like an R90S, but I am going with some basic upgrades - I want it to STOP!
craydds is offline   Reply With Quote
Old 11-15-2011, 03:14 PM   #21
oz_airhead
Gnarly Adventurer

Joined: Mar 2010
Location: AUS
Oddometer: 185
Quote:
Originally Posted by craydds View Post
The stock, original outer seals look good.

I will re-install them.
My outer seal has swelled up considerably, so I had no choice.

Cheers

OZ.
oz_airhead is offline   Reply With Quote
Old 11-16-2011, 08:02 AM   #22
H96669
A proud pragmatist.

H96669's Avatar

Joined: Nov 2009
Location: Hiding off Hwy 6, B.C.
Oddometer: 4,296
Quote:
Originally Posted by oz_airhead View Post
My outer seal has swelled up considerably, so I had no choice.

Cheers

OZ.
Warning warning.....don't use any type of petroleum based cleaners on them seals, they will swell up. They "may" shrink back after a couple days of drying and washing with methyl hydrate but, considerably slows down them caliper rebuilt jobs.
__________________
Have tools, will travel!
H96669 is online now   Reply With Quote
Old 11-16-2011, 08:48 AM   #23
craydds OP
Beastly Adventurer

craydds's Avatar

Joined: Aug 2010
Location: Las Cruces, NM
Oddometer: 1,127
Got it. Thanks!
craydds is offline   Reply With Quote
Old 11-16-2011, 01:45 PM   #24
oz_airhead
Gnarly Adventurer

Joined: Mar 2010
Location: AUS
Oddometer: 185
Quote:
Originally Posted by H96669 View Post
Warning warning.....don't use any type of petroleum based cleaners on them seals, they will swell up. They "may" shrink back after a couple days of drying and washing with methyl hydrate but, considerably slows down them caliper rebuilt jobs.
Yep! Got it. Mine were old, split and had swelled. I have never put any sort of that type of cleaner on them.

Thanks.
oz_airhead is offline   Reply With Quote
Old 11-16-2011, 07:54 PM   #25
craydds OP
Beastly Adventurer

craydds's Avatar

Joined: Aug 2010
Location: Las Cruces, NM
Oddometer: 1,127
Waiting on parts for the brakes. Noticed the fork seals are leaking. Good time to fix 'em.

Got this Fork Drain Tool from Joes Tools. http://www.culayer.com/Joes_tools.htm


Socket welded to a wrench. Allen wrench goes into damper rod, allows you to keep the damper rod from turning as you loosen the nut. Loosen and remove the damper rod nut/washer before proceeding.

craydds screwed with this post 11-16-2011 at 08:17 PM
craydds is offline   Reply With Quote
Old 11-16-2011, 08:02 PM   #26
craydds OP
Beastly Adventurer

craydds's Avatar

Joined: Aug 2010
Location: Las Cruces, NM
Oddometer: 1,127
Good time to loosen the ends with the axle in place. Note: the nut on the end of the damper rod is loosened FIRST. see above.

The fork legs are off.

All in good condition, just need a thorough cleaning.

craydds screwed with this post 11-16-2011 at 08:12 PM
craydds is offline   Reply With Quote
Old 11-18-2011, 09:20 AM   #27
surtees
Adventurer

Joined: Oct 2011
Location: la la land
Oddometer: 28
thanks craydds for a great post. I have just gotten some parts (lower sliders, dual disk MC, caliper, etc) from a 79 R100 rt to add the right brake to my 75 R90 and this is very helpful. Will do some careful cleaning and looking at the shape of the individual pieces this weekend and if it is ok to jump on your thread post some pics and maybe questions here as well? One quick question - what are good cleaners/solvents for these metal and rubber parts?
thanks.
surtees is offline   Reply With Quote
Old 11-18-2011, 06:32 PM   #28
craydds OP
Beastly Adventurer

craydds's Avatar

Joined: Aug 2010
Location: Las Cruces, NM
Oddometer: 1,127
Quote:
Originally Posted by surtees View Post
thanks craydds for a great post. I have just gotten some parts (lower sliders, dual disk MC, caliper, etc) from a 79 R100 rt to add the right brake to my 75 R90 and this is very helpful. Will do some careful cleaning and looking at the shape of the individual pieces this weekend and if it is ok to jump on your thread post some pics and maybe questions here as well? One quick question - what are good cleaners/solvents for these metal and rubber parts?
thanks.
Glad to have you join in. Yes, post your pics. We always learn from each other. Be careful with the solvents, some eat plastic/rubber parts. Be safe, use detergents (Dawn, S100, etc.) and elbow grease, scrub with tooth brush, scotchbrite, fine steel wool, gently but thoroughly. Many of the old parts are no longer available, and if you can clean up your machine, lube and reinstall, then you'll have a good result. What amazes me is the hight quality of the original parts. My ol' bike is dirty, dried out grease, but in disassembly, then clean-up, everything is looking good as new. But, as an example, rusted caliper pistons, could have been polished, rust treatment (Ospho,etc.), then reinstalled and it could possibly work alright; as was previously noted, they could rust again. So, in this case I am going with new pistons (freakin' expensive) because as Snowbum told me (personal email), we don't want to experiment with our brakes. Keep us posted on your project. Good luck, and stay tuned.

craydds screwed with this post 11-19-2011 at 06:15 AM Reason: spelling
craydds is offline   Reply With Quote
Old 11-20-2011, 06:00 PM   #29
surtees
Adventurer

Joined: Oct 2011
Location: la la land
Oddometer: 28
Here are the lowers and calipers as received:

Externally looked pretty good but lots of muddy sludge in the piston and caliper body:

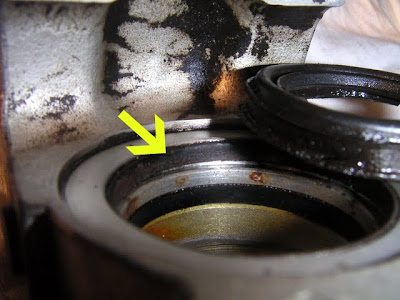

Also a little pitting of piston, not very deep but through to coating:

So does this look like it is salvageable with some polishing (I have the second one to do as well)? And does polishing mean using a fine wet sandpaper or something else (I do have a bench grinder).
Also probably a really noob question but when I took out the dust cover it left this hard ring - I think it is part of the dust cover but before moving it just wanted to make sure...
Thanks for any help.
surtees is offline   Reply With Quote
Old 11-20-2011, 06:07 PM   #30
oz_airhead
Gnarly Adventurer

Joined: Mar 2010
Location: AUS
Oddometer: 185
Quote:
Originally Posted by surtees View Post
Here are the lowers and calipers as received:

Externally looked pretty good but lots of muddy sludge in the piston and caliper body:

Also a little pitting of piston, not very deep but through to coating:

So does this look like it is salvageable with some polishing (I have the second one to do as well)? And does polishing mean using a fine wet sandpaper or something else (I do have a bench grinder).
Also probably a really noob question but when I took out the dust cover it left this hard ring - I think it is part of the dust cover but before moving it just wanted to make sure...
Thanks for any help.

Steel ring is part of the dust cover. I don't know about polishing up that piston. Up to you. But mine (dual disc) had one of the pistons just as bad - I replaced it. I couldn't find a aftermarket replacement. I bought OEM...($$) OEM comes with a seal kit (both fluid and dust)


Read my post #17 above about after market dust seals.

Good luck!

OZ
oz_airhead is offline   Reply With Quote
Reply

Share

Thread Tools Search this Thread
Search this Thread:

.
Display Modes

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is On

Forum Jump


Times are GMT -7.   It's 07:34 PM.


Powered by vBulletin® Version 3.8.5
Copyright ©2000 - 2014, Jelsoft Enterprises Ltd.
Copyright ADVrider 2011-2014
